cudy 60W Gigabit PoE+ Injector

cudy 60W Gigabit PoE+ Injector

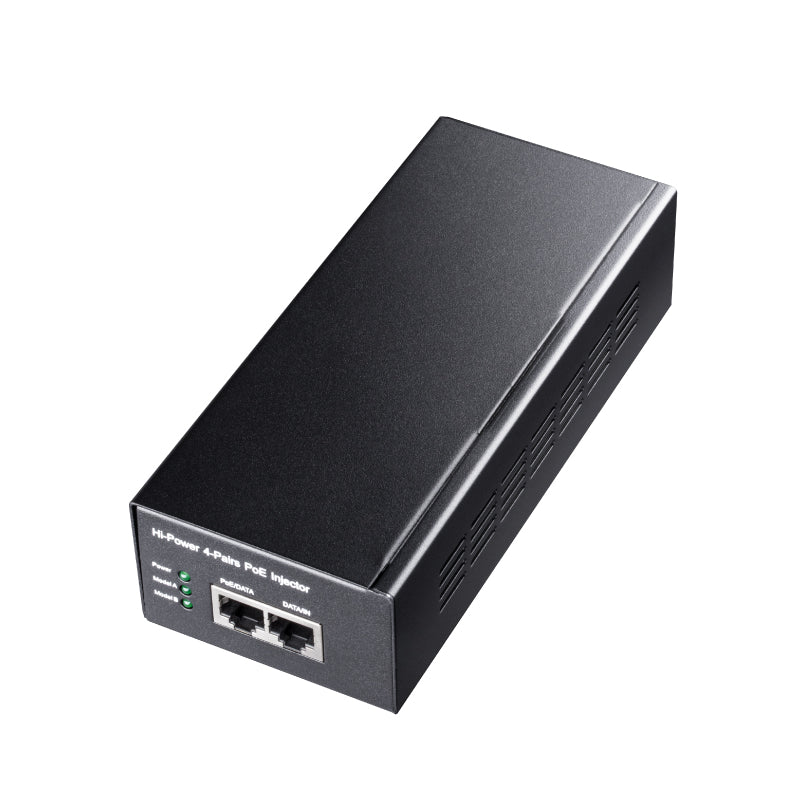

The Cudy POE300 60W Gigabit PoE+/PoE Injector allows you to easily supply power and data to a single PoE device. It features a Gigabit Ethernet input port and a Gigabit PoE output port. It’s a great option for small surveillance systems or a VOIP phone or a WiFi AP.

The 2 port switch supports 60W total PoE power on the PoE output port. It complies with IEEE802.3af/at Standard speeds for great performance. The Injector is powered by an AC power adapter and can be easily mounted to a wall.

Used for many applications the Cudy POE300 works with IP Cameras for home, office or small businesses. It also works well with VoIP phones for business conferences and WiFi APs for the office and businesses. Its simple plug and play interface makes it incredibly easy to use.

FEATURES:
Up to 60 watts PoE power supply
1 10/100/1000M Ethernet Input port
1 10/100/1000M PoE Output port
IEEE 802.3at / IEEE 802.3af standard compliant
Plug&play, simple setup with no configuration needed

SPECIFICATIONS:
No. of channels: 1
Pass-Through Data Rates: 10/100/1000Mbps
Power over Ethernet Output:
Pin Assignment and Polarity: 1/2 (-), 3/6 (+),4/5 (+), 7/8 (-)
Output Power Voltage: 50Vdc
User Port Power: 60W

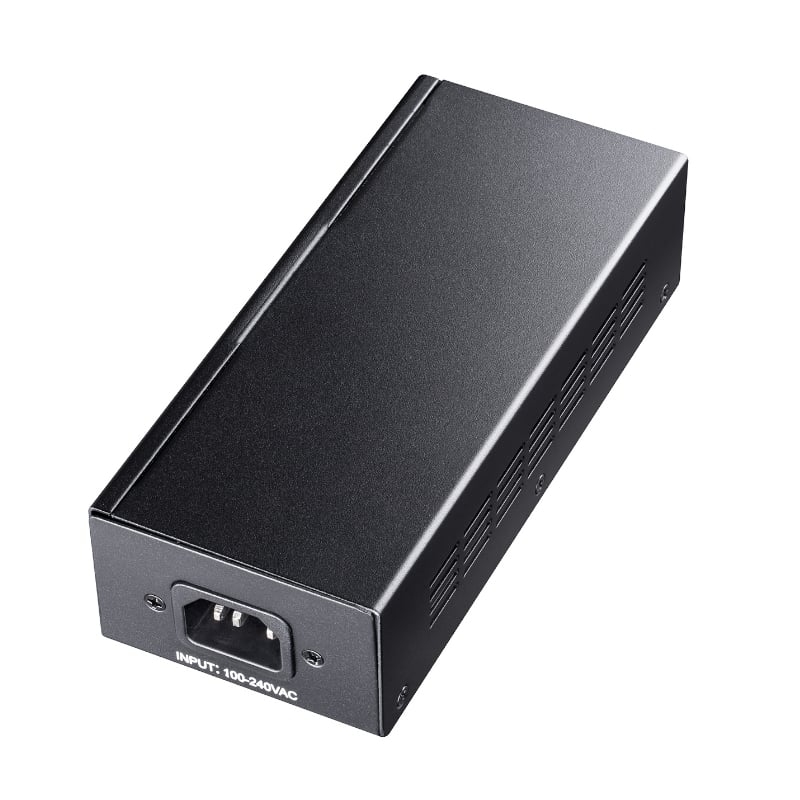

Input Power Requirements:
AC Input Voltage: 100 to 240 VAC
AC Input Current: 0.5A 100-240 VAC
AC Frequency: 50 to 60 Hz

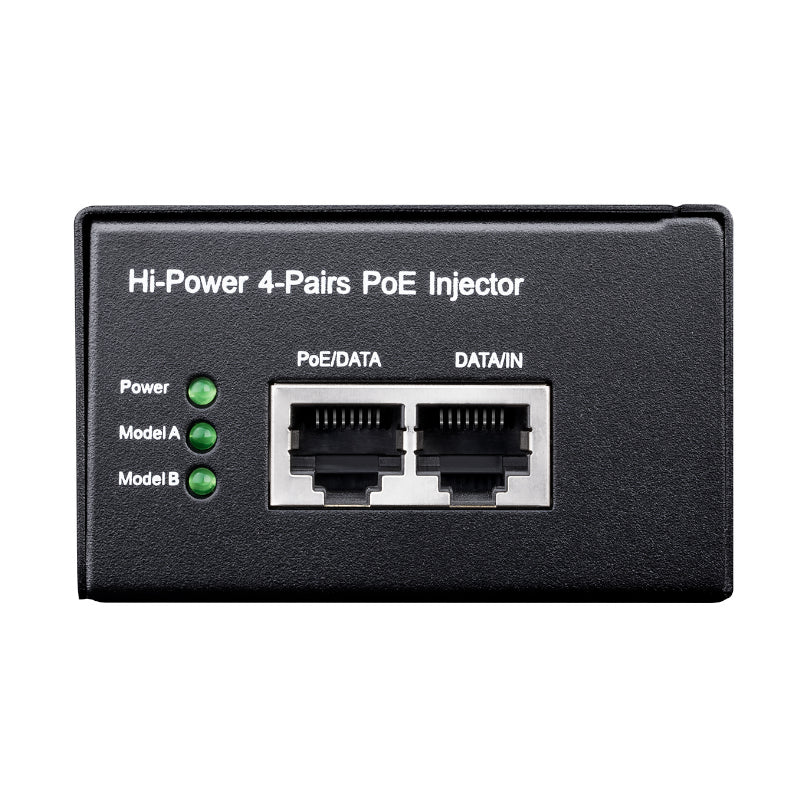

Indicators:
System Indicator: AC Power
User Indicator: Channel Power
Connectors: Shielded RJ-45, EIA 568A and 568B
Regulatory Compliance:
IEEE 802.3af (15.4W)
IEEE 802.3at (30W)
IEEE802.3at 4Pairs(60W)
Product Dimensions: 14.5 x 6 x 4 cm

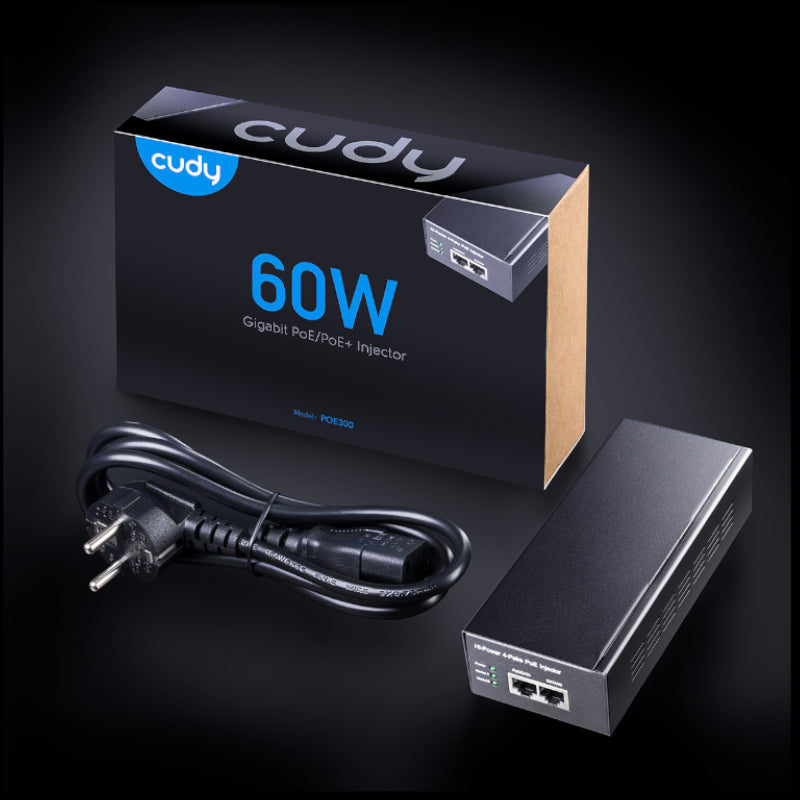

WHAT’S IN THE BOX :
Cudy POE300 60W Gigabit PoE+/PoE Injector – Black x1
Power Adapter x1
